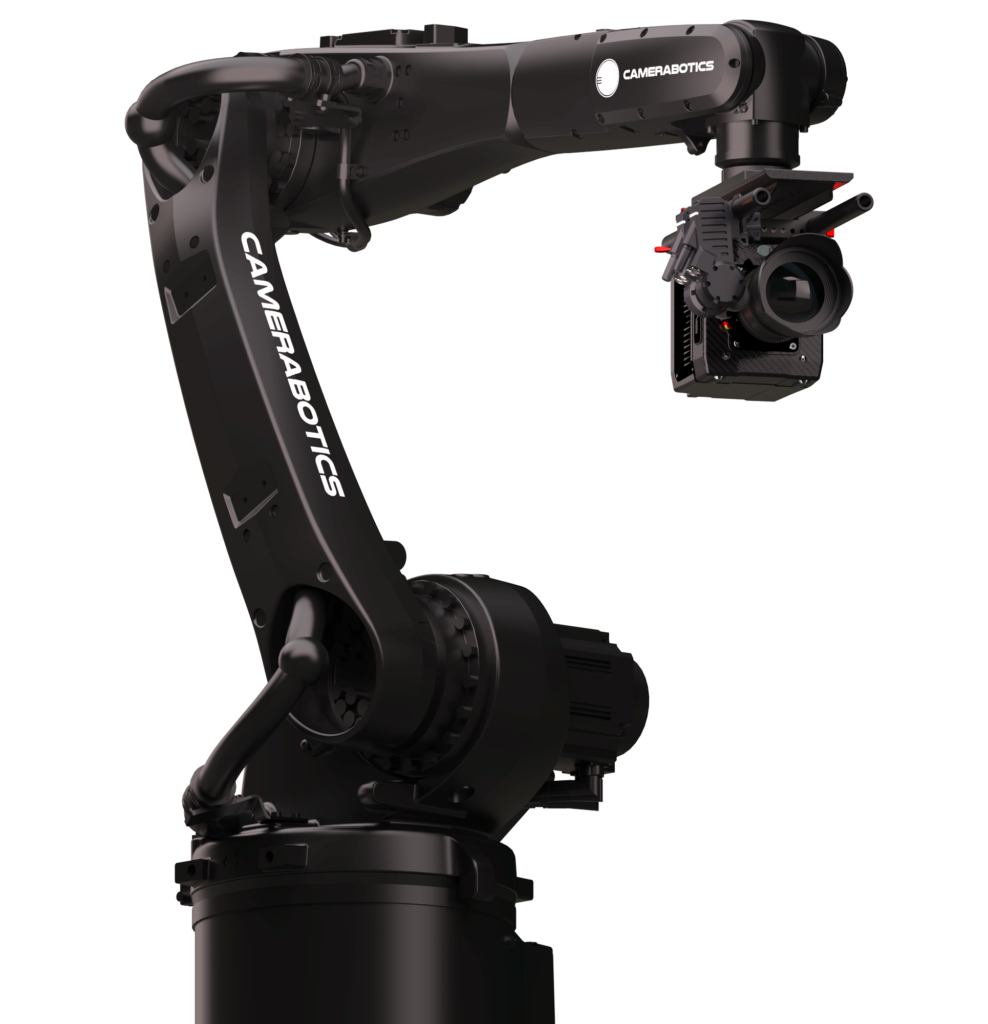

The CRX 1440
Cinema Robot.
Midsize, Portable, High-Speed
3m/s
CAMERA SPEED
11kg
DYNAMIC PAYLOAD
1,440mm
ARM REACH
0.04mm
MOTION REPEATABILITY
OUR MOST-ADVANCED WALL-POWERED ROBOT.
With 11 KG of camera payload and flash-fast camera speeds, the CRX1440 is our most advanced Cinema Robot that runs on standard wall power.
Ideal for small studios or on-location shoots, the 1440 will stroll through your standard doorways and is easily handled by one person for on-location shoots.
Real-Time Interface
Focus on design and creativity and let Lensmaster remove the guesswork from opperating your robot.
Timeline Editor
Design complex moves with few keyframes using Lensmaster’s advanced motion planner.
Joystick Jogging
Jog your robot in realtime using any joystick controller via Lensmaster.
Dynamic FIZ Control
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Target Tracking
Easily keep your subject centered in frame at all times regardless of how complex your move is.
Music Sync
Sync music playback with your robot motion and design animations that hit the beat!
Virtual Production Ready
Stream FreeD in realtime to Unreal Engine or Aximmetry.
Export FBX to Maya or Blender.
Pre-Visualization
Virtually visualize your shot whilst designing it before connecting to a robot.
TECH SPECS

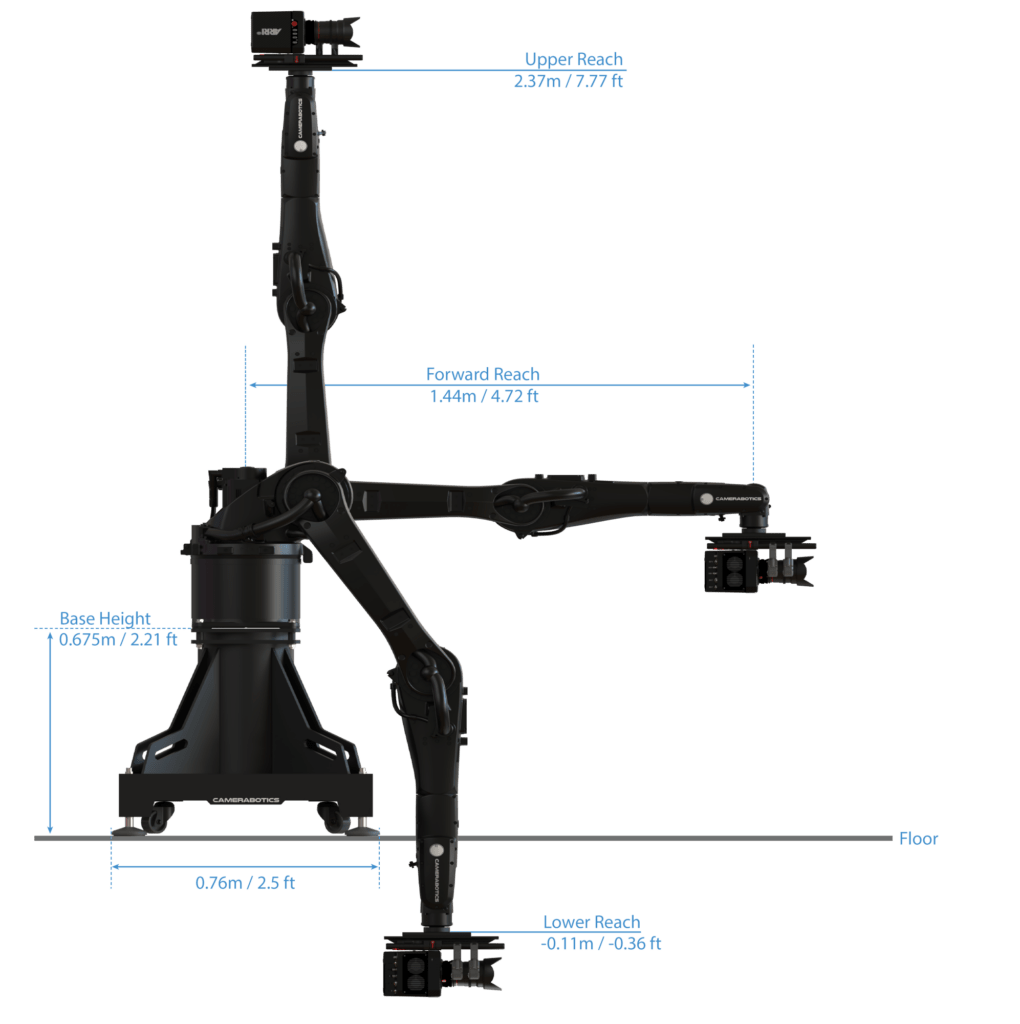

Rig Reach
Max Reach (From Center) 1.44m 4.72ft
Max Height (From Floor) 2.37m 7.77ft
Min Height (From Floor) -0.11m -0.36ft
Rig Kinematics
Range of Motion Speed
Rotate ±170° 220°/s
Lift -185° / +65° 210°/s
Arm -137° / 163° 270°/s
Roll ±185° 381°/s
Tilt ±120° 311°/s
Pan ±350° 472°/s
